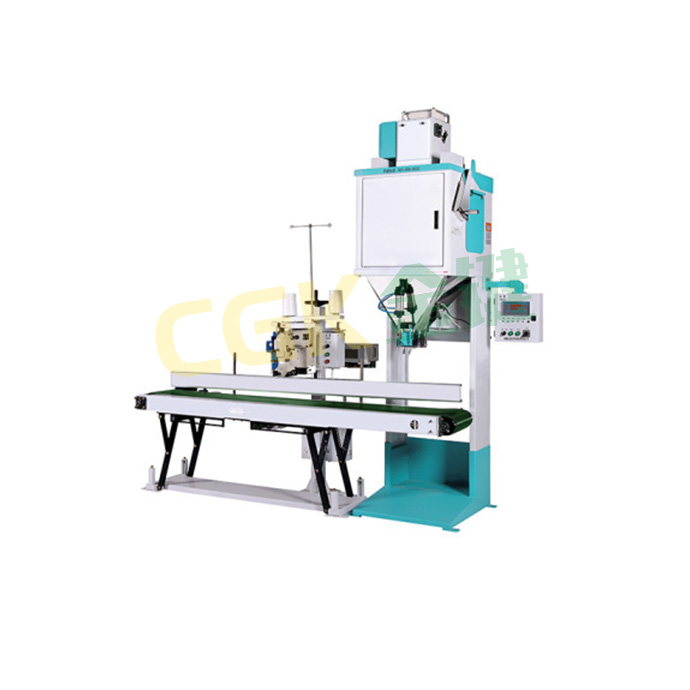

Granule packing scale-Henan Gold Key Machinery Technology Co.,Ltd.

Weighing instrument + PLC dual-core control technology, using a three-sensor structure.
Digital intelligent automatic lifting conveyor, the conveyor can quickly switch to the appropriate position according to different packaging, and can remember the lifting height of different types.
Easy to turn, rotating column, multi-functional sealing method. For different packaging and different sealing forms, a sewing machine and a heat sealing machine that can be switched by rotation are designed, allowing users to experience a convenient and easy-to-use experience.

Model	DCS-25FA	DCS-50FA	DCS-100FA
Packing range	(5-25) kg	(10-50) kg	(30-70) kg
Packing speed	(200-560) bag/hour	(200-480) bag/hour	(200-400) bag/hour
Graduation value (g)	5	5	5
Weighing error	±0.1%F.S	±0.1%F.S	±0.1%F.S
Power supply, power consumption	4N-AC380V 50Hz 1.1KW	4N-AC380V 50Hz 1.3KW	4N-AC380V 50Hz 1.3KW
Air source, air consumption	0.4-0.5MPa 1m³/h	0.4-0.5MPa 1m³/h	0.4-0.5MPa 1m³/h
The temperature of the environment	(0~40)℃	(0~40)℃	(0~40)℃
The moisture of the environment	Not exceeding 90%RH at 40℃, Allow greater humidity at low temperatures	Not exceeding 90%RH at 40℃, Allow greater humidity at low temperatures	Not exceeding 90%RH at 40℃, Allow greater humidity at low temperatures
Dimension (mm)(LxWxH)	2847x1026x2731	2847x1026x2731	2970x1036x2931
