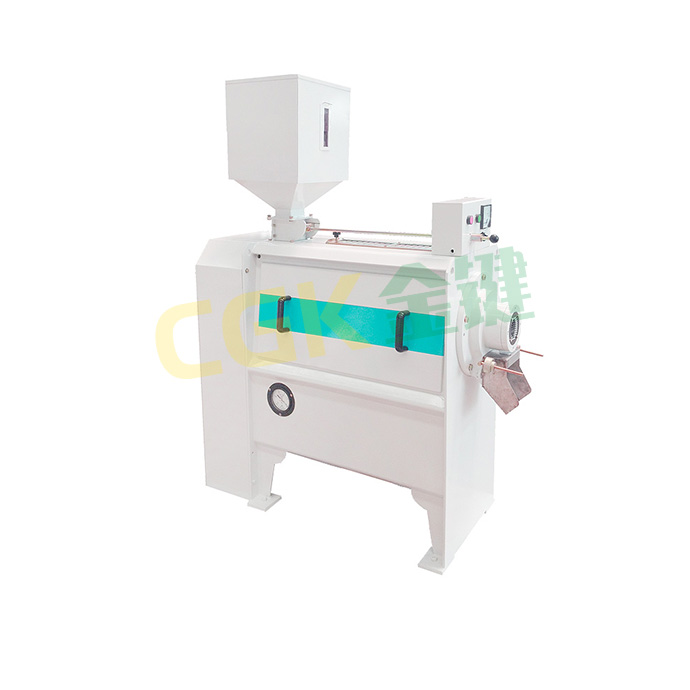

Horizontal grain peeler

Functions:

The material enters the peeling inner cavity under the action of the propeller, and is rubbed by the grinding wheel and the screen plate to peel off the skin to achieve the peeling effect. It can effectively remove the seed coats of corn, sorghum, millet, barley and other crops while fully ensuring the integrity of the kernels.

Mainly used in grain processing enterprises, feed processing enterprises, etc.

Send Email Contact us

Advantages

The sanding roller is lengthened and has a larger diameter, resulting in a larger peeling area and a more uniform peeling effect.
Install a high-pressure jet fan to reduce the temperature of the material, increase the number of material turns, and improve the peeling effect;
The discharge port adopts a drip plate classification and secondary separation device, which can reduce the temperature and skin content of the finished product.
Optional intelligent operating system, added human-computer interaction interface, automatically adjusts the incoming machine flow and stabilizes the main motor current.

Parameter

Model		MTPS-18	MTPS-18*2	MTPS-25	MTPS-25*2	MTPS-30	MTPS-30*2
capacity(t/h)	maize	1.5-2.5	3-5	2.5-4.5	5-9	3.5-6.5	7-13
	Sorghum	1.5-2.5	3-5	2.5-4.5	5-9	3.5-6.5	7-13
	oat	1-1.5	2-3	2-2.5	4-5	3-4	6-8
	Quinoa	1-1.5	2-3	2-2.5	4-5	3-4	6-8
Power(kW)		18.5-30	2×(18.5-30)	30-45	2×(30-45)	37-55	37-55
Air volume(m³/h)		1500	2500	2000	3500	2500	4000
Weight(kg)		580 (without motor)	1140 (without motor)	660 (without motor)	1240 (without motor)	980 (without motor)	1670 (without motor)
Dimension(L×W×H)(mm)		2000×690 ×1860	2070×1050 ×2000	2050×700 ×1930	2070×1100 ×2000	2380×770 ×2170	2400×1170 ×2185
