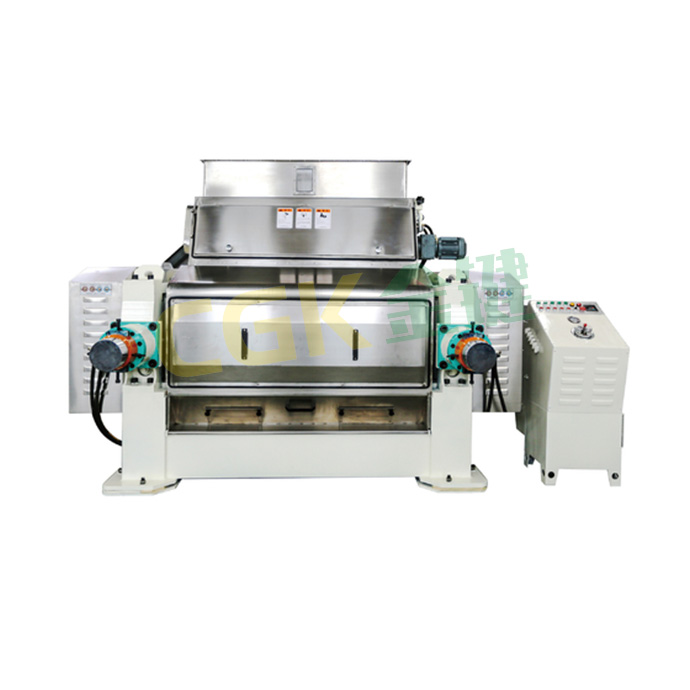

Hydraulic flaker

Hydraulic flaker

Functions:

The cooked and softened grain particles are processed into flakes under the extrusion of two alloy rollers.

Mainly used in rolled food factories, feed factories, and oil factories.

Advantages

  • The whole machine adopts a fully enclosed safety protection structure and is safe to operate;
  • It adopts hydraulic tight roller, square bearing seat and heat dissipation on both sides;
  • The rolls are made of centrifugal composite casting equipment and are made of high-nickel, chromium, and molybdenum alloys, with an alloy layer of 20-25mm and a hardness of HS72±3;
  • The imported half-sleeve 45# steel pipe quenched and tempered shaft head is removable;
    The whole machine adopts the integrated design of machine, point and liquid, with compact structure and easy installation.

Parameter

Model

Power (kw)

Roller size (mm)

Capacity (kg)

Weight (kg)

CF60×600

11×2

600×600

400-600

5000

CF60×800

18.5×2

600×800

1000-1500

5500

CF60×1000

30×2

600×1000

1500-2000

6000
