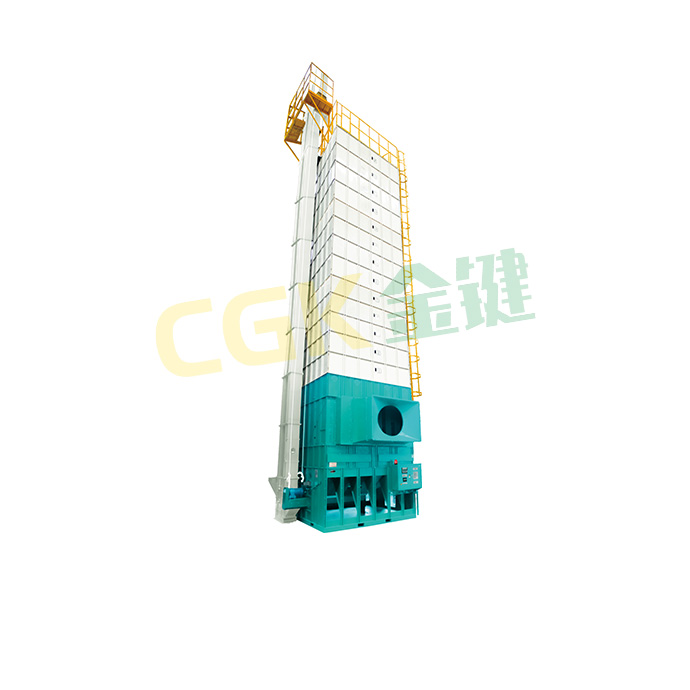

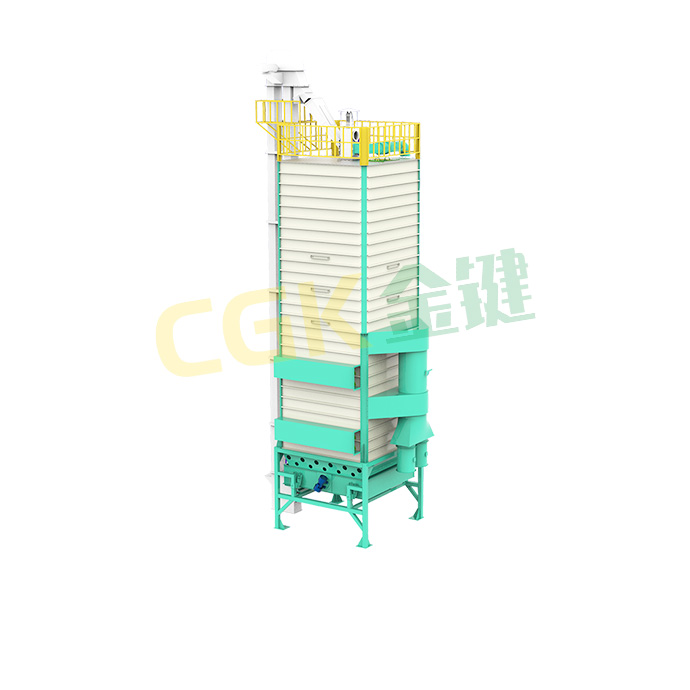

Vertical dryer-Henan Gold Key Machinery Technology Co.,Ltd.

Flexible heat source, high efficiency and energy saving
A variety of heat source methods are optional, and low-temperature drying is sufficient to maximize heat exchange and reduce energy consumption.
Even mixing, low-speed lifting, low-temperature cycle drying
Using large air volume, low temperature (hot air temperature is about 40-60 degrees Celsius), thin material layer drying, short-term heating, long-term slow drying, low heat consumption, high dehydration efficiency, and low waist burst rate. Using low-speed lifting and conveying, the mechanical impact on grains is small and the crushing rate is low.
Automatic and easy to operate
Full touch screen setting, automatic and manual modes can be selected, multi-point safety linkage device, simple setting of hot air temperature and grain moisture, accurate detection, clear display, and high degree of automation.

Model		5LH-15	5H-20	5H-30
Capacity (t)		5~15	7~20	10~30
Power (kW)		9.2	13.15	20.35
(m³/h)		10000~14000	12500~14000	20000~25000
Dimension (LxW×H)mm		2175×3590×12265	2270×4580×14230	3525×4440×14720
Net Weight (t)		3.0	3.7	5
Energy CDNSumption (10,000 kcal/hour)		13~15	20~23	30~35
Perfor- mance	Feed time (min)	50~65	50~65	50~70
	Dischargetime (min)	50~70	50~70	50~75
	Percent ofmoistreremoved (%/h)	0.5~1	0.5~1	0.5~1
