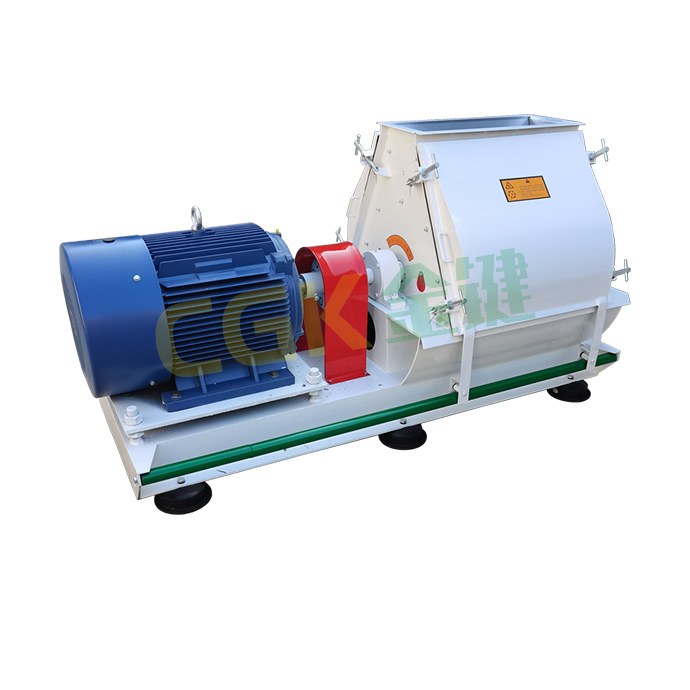

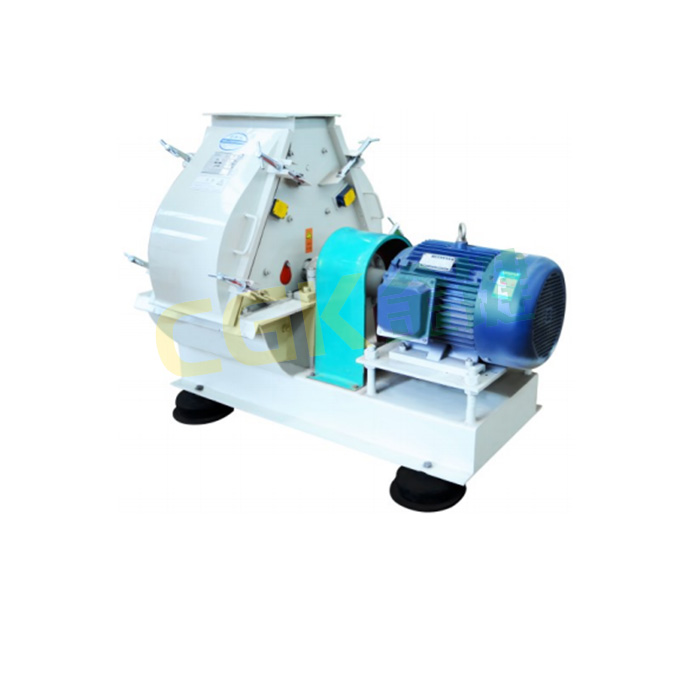

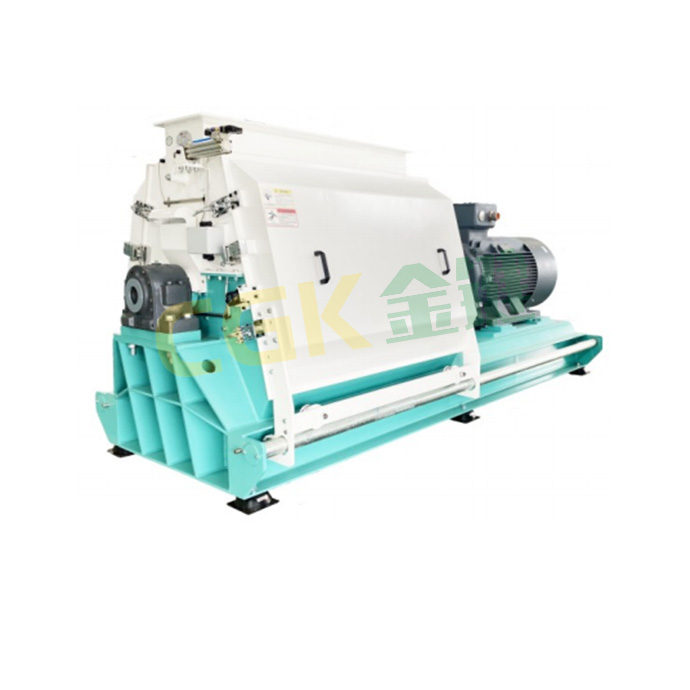

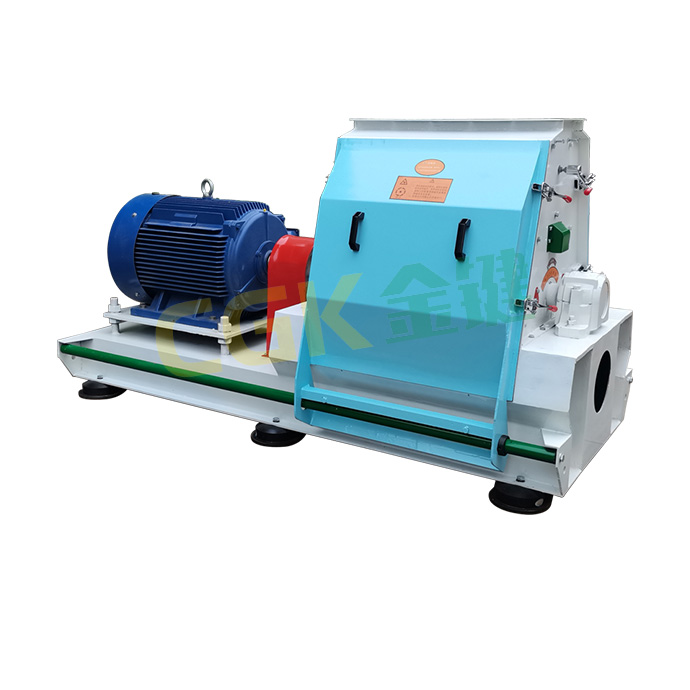

Hammer mill

Hammer mill can crush various granular feed materials, such as corn, sorghum, wheat, meal, leather, shells and other materials.

It is widely used in feed factories, alcohol factories, food factories, oil factories and other enterprises.

Send Email Contact us

Using the patented technology of "hammer limit module", the replacement time of hammer is shortened by 2 / 3.
The gap between hammer and screen is adjustable, which is suitable for grinding materials with high moisture, fiber and grease.
Wide cavity, multi screen structure, quick and convenient to replace screen, reduce the use cost of screen
Aging treatment can eliminate internal stress and prolong service life.
The vibration speed of main bearing is ≤ 3.5mm/s; the detection accuracy of rotor dynamic balance is ≤ 0.5g.
When the crusher is in normal operation, it can ensure that a coin can not be placed upright
It can automatically adjust the feeding quantity to ensure the best working condition of the crusher.
Optional with axle temperature detection, fault alarm, emergency stop switch and other systems.

Series	Model	Power	(T/h) Capacity	Remarks
60	SFSP-60x40	22/30/37/45	3.5~7.5	The capacity is calculated based on the Chinese doemstic standard corn and the sieve diameter is 2mm.
	SFSP-60×80	75	12
	SFSP-60x100	90	14.5
66	SFSP-66×80	75/90	12~14.5
	SFSP-66×100	90/110/132	15~22
	SFSP-66×120	132/160/200	22~32
	SFSP-66× 135	160/200	26~32
	SFSP-66×150	220/250	35~40
