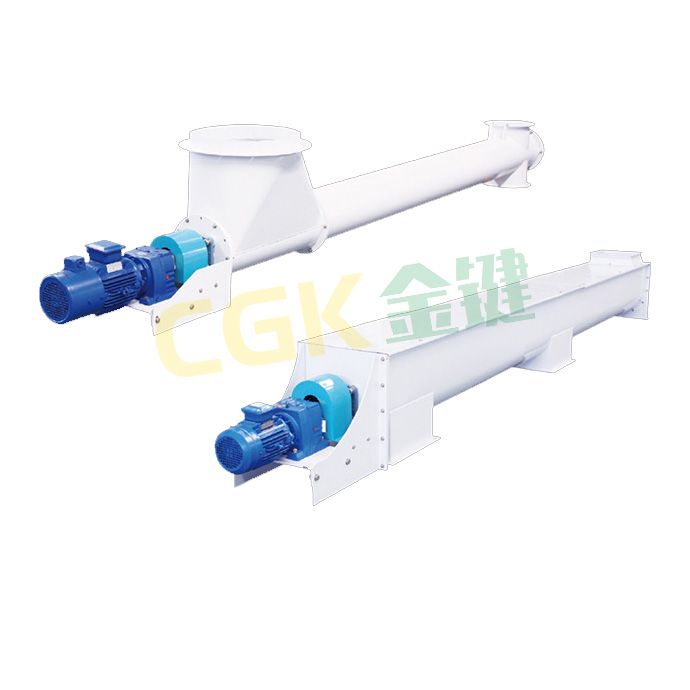

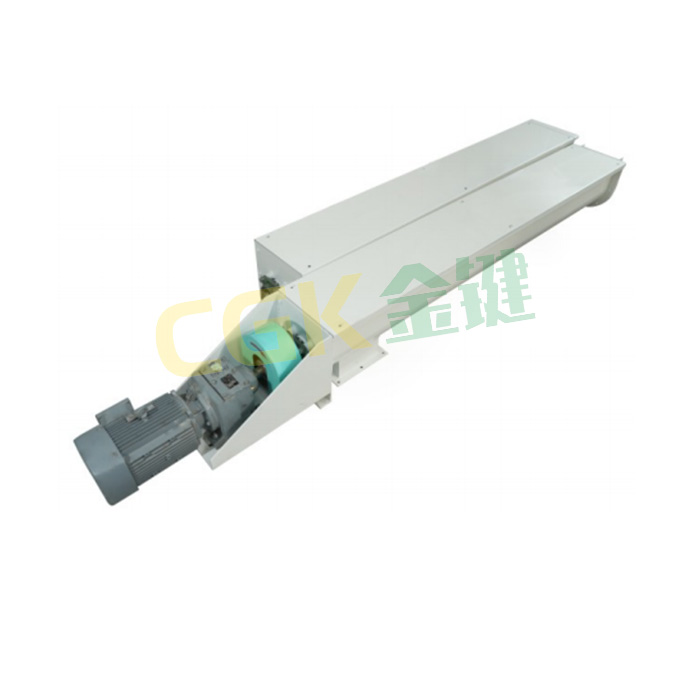

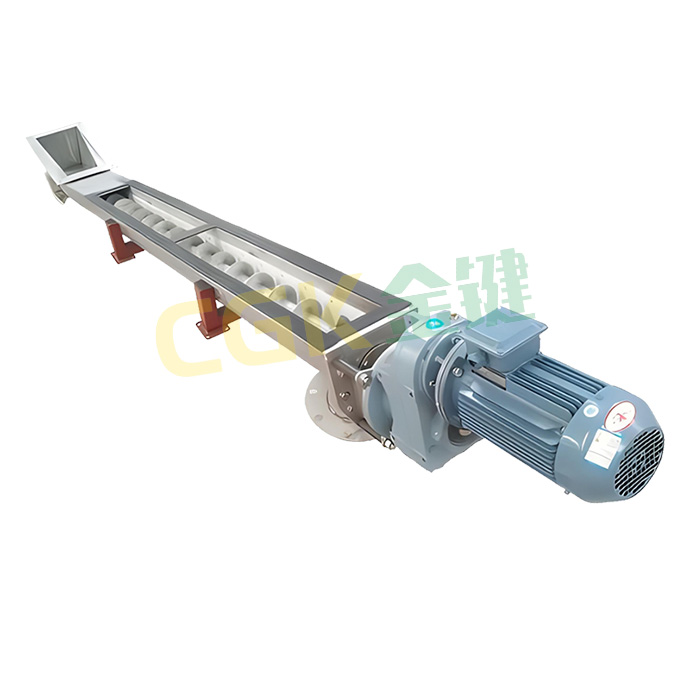

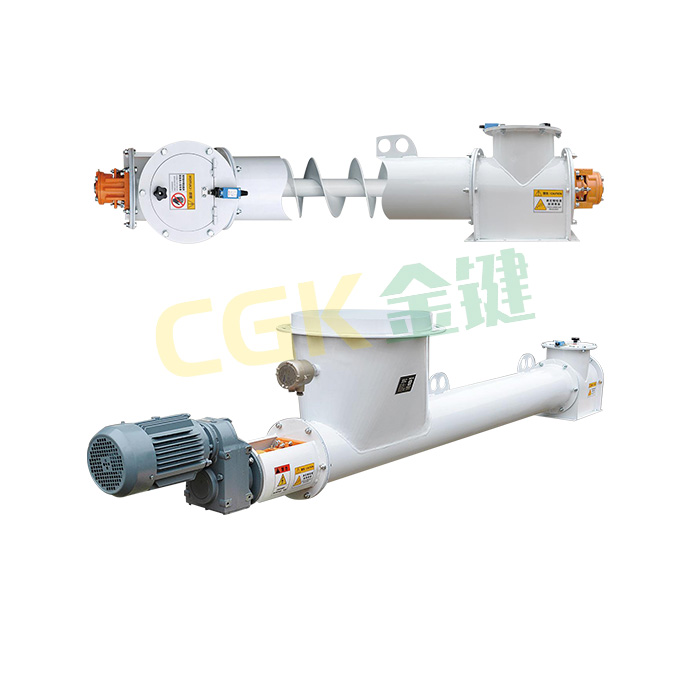

Screw conveyor

Functions:

Screw conveyor is a common material conveying equipment that uses spiral blades to transport materials from one location to another. It consists of spiral blades, inlet, outlet, driving device, support device, etc. Suitable for conveying various powdery, granular or block materials.

It is widely used in grain, feed, food, chemical, building materials and other industries

Send Email Contact us

Advantages

The layout is flexible and can be loaded and unloaded at multiple points and transported in multiple directions;
The whole machine operates smoothly, has low energy consumption and low damage rate;
The whole machine adopts an assembly structure to facilitate inspection and maintenance;
Optional plugging switch can do automatic detection to the machine.

Parameter

Model / Paramater	TLSS16	TLSS20	TLSS25	TLSS32	TLSS40	TLSS50
Spiral blade diameter	160	220	250	320	400	500
Distance of spiral blade	130	160	200	250	320	400
Rotary speed	60-160	65-140	65-130	65-110	50-100	50-90
Capacity	6	10	18	25	48	70
